PosiTector® 6000 Gauges & Probes


Two models are available: Standard and Advanced. There are many probes to choose from either with a gage body or you may purchase a probe alone. See the descriptions and downloadable pdf brochures in the description area below for more info.

See the Positector® 6000 Coating Thickness Gauge Complete Ordering Guide in the Description area below or click HERE

Purchase Accessories Here

$175.00$2,815.00

Optional Accessories

You have the option to choose additional accessories here or on the PosiTector® 6000 Accessories page.

Documents

Ferrous and Nonferrous Probes Brochure
PosiTector® 6000 Instruction Manual
On-Gage Help Reference

PosiTector® 6000 Additional Probe brochures

BHI Barcol Hardness Impressor
DPM Dew Point Meter
IRT Infrared Thermometer
RTR 3D Replica Tape Reader
RTR H Replica Tape Reader (for measuring linearized peak height)
SHD Shore Hardness Durometer
SPG Surface Profile Gage
SST Soluble Salt Tester
UTG Ultrasonic Thickness Gage
PostiTector® 200 Ultrasonic Paint Thickness Gauge for non-metal substrates

Calibration Procedures

View DeFelsko® products calibration procedures

Videos

View the full PosiTector® 6000 playlist by clicking here

Description

The TQC Coating Thickness Gauge PosiTector® 6000 from Defelsko is a rugged, fully electronic coating thickness gauge that uses magnetic and eddy current principles to measure, accurately and quickly, coating thickness on both ferrous and non-ferrous metals.

Two models are available: Standard and Advanced., both with the following features:
– Continually displays/updates average, standard deviation, min/max thickness and number of readings while measuring
– HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
– FAST mode—faster measurement speed for quick inspection
– USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
– USB mass storage—stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required
– Every stored measurement is date and time stamped
– Software updates via web keep your gage current
– Connects to PosiTector.net
– TQC also supplies Ideal Finish Analysis software. With two user levels Ideal Finish Analysis offers user friendly reporting functions for standard production work as well as advanced calculations for in depth analysis.

The Standard models are equipped with a monochrome display and a memory for 250 measure points.

The Advanced models are equipped with a hi contrast reversible color display, onscreen help, real time graphing, picture prompting and batch notes. Memory can store 100,000 readings in up to 1000 (sub-) batches. Data transfer via USB or WiFi to a PC or via Bluetooth Wireless Technology to a PC or printer. Also available are several extra measuring modes: scan mode for continuous readings, SSPC PA2 and PSPC 90/10.

Both gauge and additional probes have a two year warranty.

View Full Compatibility Chart HERE

Simple

  • Fast measurement speed—60+ readings per minute. Enhanced FAST mode—90+ readings per minute for quick inspection.
  • Ready to measure—no adjustment required for most applications
  • NEW Larger 2.8″ impact resistant color touchscreen with redesigned keypad for quick menu navigation
  • NEW On-gage help explains menu items at the touch of a button
  • Flashing display—ideal in a noisy environment
  • RESET feature instantly restores factory settings

Accurate

  • Certificate of Calibration showing traceability to NIST or PTB included
  • Built-in temperature compensation ensures measurement accuracy
  • Hi-RES mode increases displayed resolution for precision applications
  • Conforms to national and international standards including ISO and ASTM

Powerful

  • Statistics mode continually displays/updates average, standard deviation, min/max and number of readings while measuring
  • NEW Screen Capture—save 100 screen images for record keeping and review
  • HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
  • NEW Instant-on feature quickly powers up the gage if recently powered down
  • NEW Up to 30% longer battery life
  • USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
  • Every stored measurement is date and time stamped
  • Software Updates via web keep your gage current
  • Software Solutions for viewing, analyzing & reporting data

Durable

  • NEW Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
  • NEW Ergonomic design with durable rubberized grip
  • Wear-resistant probe tip
  • Shock-absorbing, protective rubber holster for added impact resistance
  • Two year warranty on gage body AND probe

Versatile

  • PosiTector® body accepts all PosiTector® 6000200RTRSPGDPMIRTSSTUTGSHDBHI, and GLS probes easily converting from a coating thickness gage to a surface profile gage, dew point meter, soluble salt tester, ultrasonic wall thickness gage, hardness tester, or gloss meter
  • Multiple Calibration adjustment options including 1 point, 2 point, and ISO 19840 correction factors
  • Selectable display languages
  • NEW Auto rotating display with Flip Lock
  • Extended cables available (up to 75 m/250 ft) for underwater or remote measuring
  • Mils/Microns/mm switchable

Standard Models

Includes ALL features as shown above plus…
  • NEW Storage of 1,000 readings per probe—stored readings can be viewed or downloaded

Advanced Models

Includes ALL features as shown above plus…
  • NEW Storage of 250,000 readings in up to 1,000 batches and sub-batches
  • Live graphing of measurement data
  • NEW Prompted Batch Mode—create pre-defined batches with on-screen text and image prompts for each reading
  • Scan Modes — increase measurement speed to 180+ readings per minute
  • Normal – take continuous readings without lifting the probe
  • Statistics – take continuous readings and record average, standard deviation, min/max thickness and number of readings while scanning
  • Limited Count Average – take continuous readings up to a user-specified count. The gage displays and records the average of the readings.
  • NEW Touchscreen keyboard for quickly renaming batches, adding notes, and more
  • Multiple stored calibration adjustments for measuring on a variety of substrate conditions
  • NEW Calibration Adjustment Reporting feature documents calibration adjustments into PosiSoft® software reports
  • NEW SSPC-PA 2ISO 19840, and IMO PSPC 90/10 modes help users comply with standards by prompting for min/max specifications, displaying the necessary readings, and automatically calculating statistics with a pass/fail result
  • WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
  • Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector® App or optional portable printer. BLE API available for integration into third-party software
  • Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols
  • NEW Connect a Bluetooth barcode scanner or keyboard to instantly annotate readings and batches

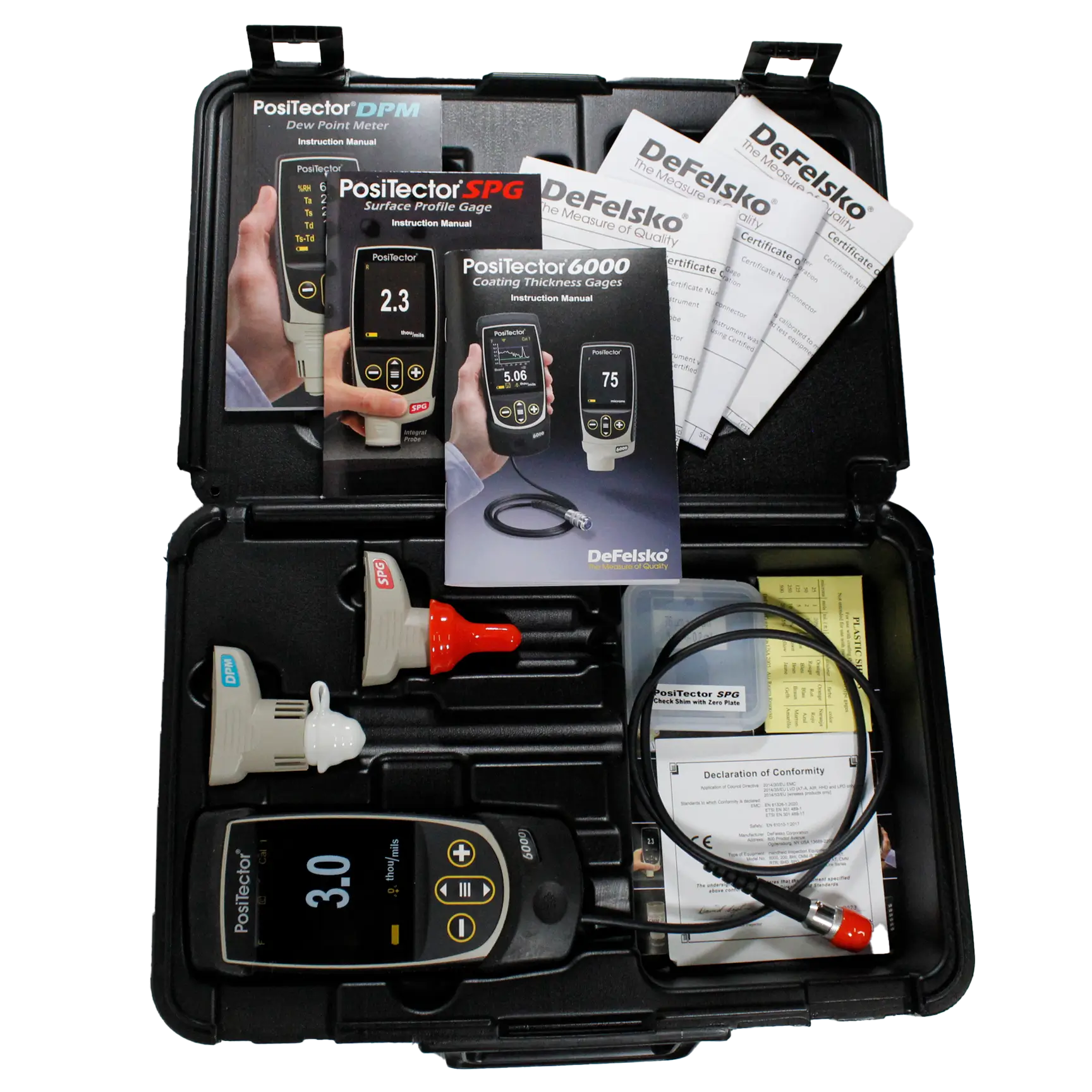

What’s included

Comes complete with PosiTector® gage body, F probe, precision plastic shim(s), protective rubber holster,
wrist strap, 3 AAA alkaline batteries, instructions, protective lens shield, convenient carrying case, Long Form
Certificate of Calibration traceable to NIST or PTB, USB cable, PosiSoft® Software, two (2) year warranty.

*SIZE: 127 x 66 x 25.4 mm (5” x 2.6” x 1”)
*WEIGHT: 137 g (4.9 oz.) without batteries

CONFORMS TO: ISO 19840/2178/2360/2808, ASTM B244/B499/D1186/D1400/D7091/E376/G12,
BS3900-C5, SSPC-PA2 and others

*Size and weight are for the PosiTector® gage body only and do not include the probe.



Ordering Guides

View PosiTector® 6000 Coating Thickness Probe Ordering Guide
View Full Compatibility Chart
View DeFelsko’s® Additional Probe Compatibility Chart
View more information about SmartLink

Ferrous and Nonferrous Type Probes

PosiTector® 6000 Additional Probe Types

PosiTector® 6000 Additional Probe brochures

BHI Barcol Hardness Impressor
DPM Dew Point Meter
IRT Infrared Thermometer
RTR 3D Replica Tape Reader
RTR H Replica Tape Reader (for measuring linearized peak height)
SHD Shore Hardness Durometer
SPG Surface Profile Gage
SST Soluble Salt Tester
UTG Ultrasonic Thickness Gage
PostiTector® 200 Ultrasonic Paint Thickness Gauge for non-metal substrates

To purchase, simply scroll to the top of this page, select your gage body, probe type, and probe model. Probes may be purchased separately.

If you would like assistance with your PosiTector® 6000 purchase, please contact us.



Weight 2 lbs
Dimensions 12 × 9 × 4 in
Choose a gage body

Standard model – BDYSTD-E, Advanced model – BDYADV-E, Probe Only, SmartLink only, Standard gage body only, Advanced gage body only

Choose material type

NONE, FERROUS, NON-FERROUS, COMBINATION, SPG – Surface Profile Gage, UTG – Ultrasonic Wall Thickness Gage, BHI – Barcol Hardness Impressor, SHD Shore Hardness Durometer, RTR Replica Tape Reader, DPM Dew Point Meter, DPM L Dew Point Logger, IRT Infrared Thermometer, SST Soluble Salt Tester, 200 Ultrasonic Paint Thickness Meter

Choose a probe model

NONE, F1, FS1, FRS1 90°, FXS1*, FNDS1 – Ideal for Duplex Coating Systems, F0S1 – Microprobe, F45S1 – Microprobe 45°, F90S1 – Microprobe 90°, F90ES1 – Microprobe 90°, FT1, FTS1, FTRS1 90°, FHXS1**, FKS1, FJS1, FLS1, FNGS1*, N1, NS1, NRS1 90°, NAS1, N0S1, N45S1 45°, N90S1 90°, NKS1, FNGS1*, FN1, FNS1, FNRS1, FNDS1, FNTS1, F3, FS3, FRS3 90°, FXS3*, FNDS3, F0S3, F45S3 45°, F90S3 90°, F90ES3 90°, FT3, FTS3, FTRS3, FHXS3**, FKS3, FJS3, FLS3, FNGS3*, N3, NS3, NRS3 90°, NAS3, N0S3, N45S3 45°, N90S3 90°, NKS3, FNGS3*, FN3, FNS3, FNRS3, FNDS3, FNTS3, PRBF, PRBFS, PRBFRS 90°, PRBFXS*, PRBFNDS, PRBF0S, PRBF45S, PRBF90S 90°, PRBF90ES 90°, PRBFT, PRBFTS, PRBFTRS 90°, PRBFHXS**, PRBFKS, PRBFJS, PRBFLS, PRBFNGS*, PRBN, PRBNS, PRBNRS1 90°, PRBNAS, PRBN0S, PRBN45S 45°, PRBN90S 90°, PRBNKS, PRBFN, PRBFNS, PRBFNRS 90°, PRBFNDS*, PRBFNTS, PRBSPG, SPG1, SPG3, PRBSPGS, SPGS1, SPGS3, PRBSPGOS, SPGOS1, SPGOS3, PRBSPGCS, SPGCS1, SPGCS3, PRBSPGTS, SPGTS1, SPGTS3, PRBUTGCA, UTGCA1, UTGCA3, PRBUTGC, UTGC1, UTGC3, PRBUTGCX, UTGCX1, UTGCX3, PRBUTGCLF, UTGCLF1, UTGCLF3, PRBUTGM, UTGM1, UTGM3, PRBUTGP, UTGP1, UTGP3, PRBSHDA, SHDA1, SHDA3, PRBSHDD, SHDD1, SHDD3, PRBBHI, BHI1, BHI3, PRBRTRH, PRBRTR3D, PRBDPM, PRBDPMIR, PRBDPMS, PRBDPMA, PRBDPMD, DPML, PRBIRT, PRBSST, RTRH1, RTRH3, RTR3D1, RTR3D3, DPM1, DPM3, DPMIR1, DPMIR3, DPMS1, DPMS3, DPMA1, DPMA3, DPMD1, DPMD3, IRT1, IRT3, SST1, SST3, PRB200B, PRB200C, PRB200D, 200B1, 200C1, 200D1, 200B3, 200C3, 200D3
