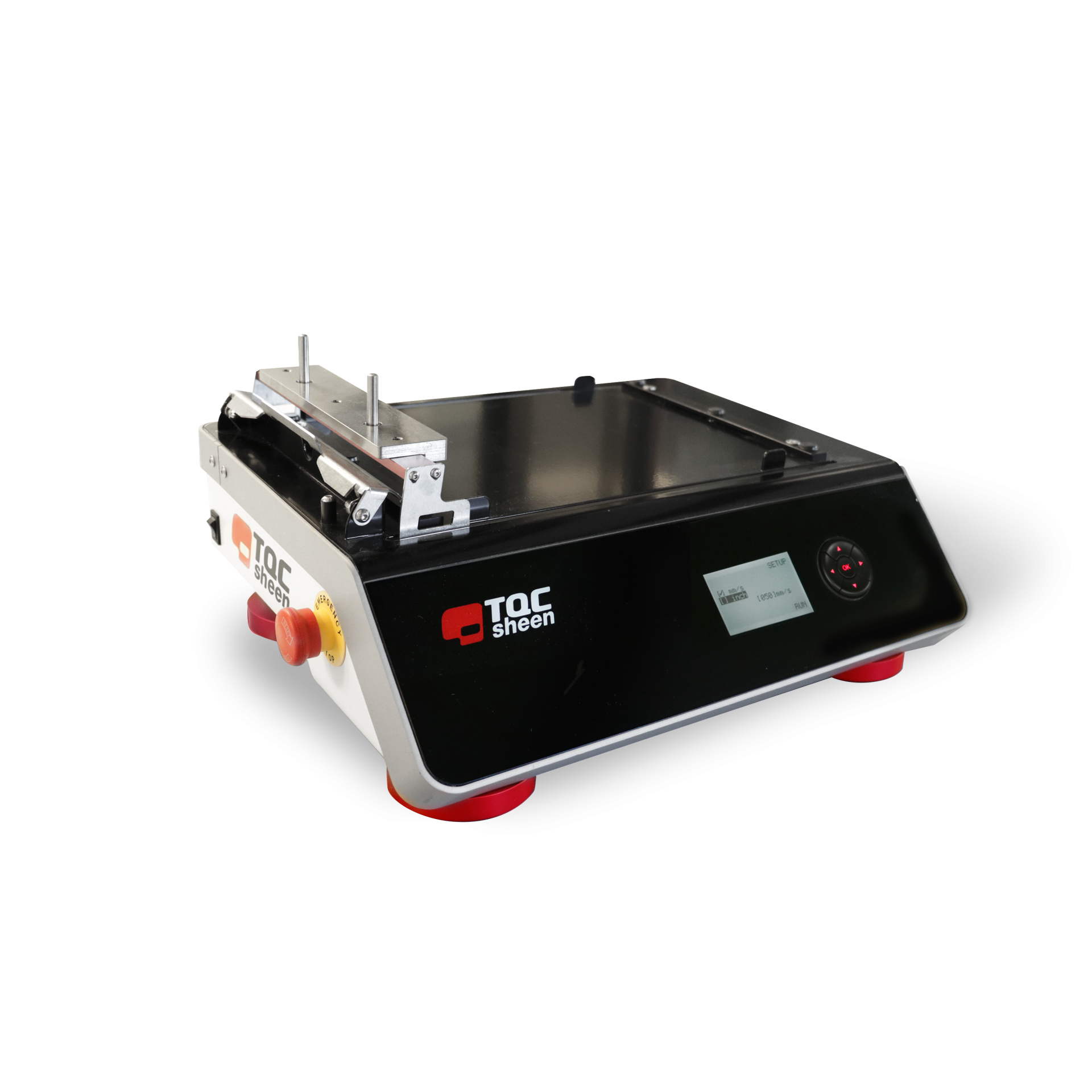

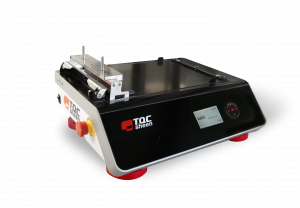

Application speed can be set from 1 to 150 mm/s. The Compact is suitable for both wire wound rod applicators and block applicators. Operating is easy through the standard TQC Sheen operating interface. The Automatic Film Applicator Compact Compact is available with a glass bed or a perforated vacuum bed sold separately.
$3,495.00
Application speed can be set from 1 to 150 mm/s. The Compact is suitable for both wire wound rod applicators and block applicators. Operating is easy through the standard TQC Sheen operating interface. The Automatic Film Applicator Compact Compact is available with a glass bed or a perforated vacuum bed sold separately.
| Weight | 36 lbs |
|---|---|
| Dimensions | 23 × 20 × 14 in |
Number of holes in vacuum bed: 117
Dimensions: 335x400x190 mm / 13.18×15.74×7.48 inch
Distance vacuum bed holes: 22 mm / 0.86 inch
Diameter holes in vacuum bed: 1,3 mm / 0.05 inch
Spiral bar diameter: 6 – 12,7 mm / 0.23 – 0.5 inch
Display: 128 x 64 pixels graphical LCD, 70 mm x 40 mm, white illuminated, heated
Energy consumption: Max. 40 Watt
Mass: 12,5 kg / 27.55 lbs
Max. size test panel: 300x200x8 mm / 11.81×7.87×0.31 inch
Max. height film applicators: 40 mm / 1.57 inch
Max. Test Substrate Thickness: 8 mm / 0,31 inch (incl coating)
Max. Test Chart Size: DIN A4
Min. Spiral bar length: >220 mm / >8.66 inch
Min. Vacuum: -100 mbar
Speed Accuracy: < 1%
Stroke length: 250 mm / 9.84 in
Stroke length accuracy: <1 mm (0,025 mm/step) / <0.03 inch
Languages: English
Traverse speed: 1 – 150 mm/s / 0.03 – 5.90 inch/s
vacuum connection: 6 mm / 0.23 inch Quick Connect
Power supply: 110 – 240VAC / 50 – 60Hz
Volume Drip tray: 30 ml
TQCSHEEN Cube applicator for applying a paint film of uniform thickness. Ideal for applying paint on test panels used on for instance a drying time recorder.
AB3700 – TQC Cube Applicator, gaps 38 & 76µm
AB3701 – TQC Cube Applicator, gaps 50 & 100µm
AB3702 – TQC Cube Applicator, gaps 75 & 150µm
AB3703 – TQC Cube Applicator, gaps on request (µm)
AB3705 – TQC Cube Applicator, gaps 1,5 & 3 mil
AB3706 – TQC Cube Applicator, gaps 2 & 4 mil
AB3707 – TQC Cube Applicator, gaps 3 & 6 mil
AB3708 – TQC Cube Applicator, gaps on request (mil)
AB3709 – TQC Cube Applicator, gaps 6 & 8 mil
AB3710 – Cube Applicator 50mm wide, gaps 50 & 100µm, reservoir Ø: 43 mm / 1.69 inch
AB3711 – Cube Applicator 50mm wide, gaps 150 & 200µm, reservoir Ø: 43 mm / 1.69 inch
AB3712 – TQC Cube Applicator, gaps 6 & 8 mil
SH0077 – 50mm Cube Film Applicator 150-200µm
