Thermax Temperature Indicators


Thermax Temperature Indicators Stickers come in a variety of temperature ranges and singular degrees in the Encapsulated stickers. View the long description below for more details.

Thermax irreversible temperature indicators

Introducing the Thermax Irreversible Temperature Indicators, the innovative solution for temperature monitoring in manufacturing and engineering processes.

Our temperature stickers, also known as irreversible temperature indicators, are an effective, practical and cost-efficient way to measure critical temperatures in various applications. The Thermax labels are sized between 17mm and 51mm, catered to fit specific temperature conditions while ensuring optimal performance.

Each thermometer sticker operates on a unique, self-contained system. Once activated, a chemical reaction occurs, altering the color of the sticker to indicate the temperature change permanently. The sticker will not revert to its original color once exposed to higher temperatures, affording an irrefutable, tamper-proof audit solution.

With over a hundred years of experience in temperature monitoring applications, Thermax offers unrivaled reliability, accuracy, and longevity. Our temperature indicators can be used across a range of applications, such as autoclaves, food processing, medical sterilization, and in transportation and storage.

Using Thermax irreversible temperature indicators takes the guesswork out of temperature monitoring, giving engineers and manufacturers the confidence they need for high-accuracy results. These temperature-sensitive labels ensure the highest level of quality control and prevent product recalls, saving businesses time and money.

Say goodbye to complex systems and time-consuming inspection methods with Thermax temperature indicators. The perfect monitoring solution for savvy manufacturers and engineers. Order your Thermax Irreversible Temperature Indicators today to experience the ultimate in temperature monitoring.

Features

• Clear color change shows maximum
temperature experienced
• Permanent record of highest temperature
• Immediate response to temperature
• Cost effective temperature monitoring solution
• Oil, water, and steam resistant

Benefits

• Easy to read – Distinct color change when
temperature been exceeded (Clear to BLACK).
• Easy to use – Product arrives ready to use.
No pre-activation required.
• Easy to implement – Solutions available for
low volume scenarios or for high volume
manufacturing lines.

Thermax temperature indicator application examples

  • Warranty Claims – Proof of overheated equipment
  • Preventative Maintenance – Monitor machine components
  • Process Validation – Confirm temperatures have been achieved
  • Proof of Curing, Bonding, and Drying – Verify you’ve reach optimal temperature



10 LEVEL SPECIFICATIONS
Size: 2.00” x 0.7” (51x18mm)
Scale: °F and °C
Type: Vertical, Self Adhesive
Units/Packs: 10

A°F104108111115120129140144149160
°C40424446495460626571
B°F171180190199210219230241250261
°C7782889399104110116121127
C°F270280289300309320331340351360
°C132138143149154160166171177182
D°F370379390399410421435450466480
°C188193199204210216224232241249



8 LEVEL SPECIFICATIONS
Size: 2.00” x 0.7” (51x18mm)
Scale: °F and °C
Type: Vertical, Self Adhesive
Units/Packs: 10

A°F99104109115120129140149
°C3740434649546065
B°F160171180190199210219230
°C717782889399104110
C°F241250261270280289300309
°C116121127132138143149154
D°F320331340351360370379390
°C160166171177182188193199
E°F399410421435450466480489500
°C204210216224232241249154260



6 LEVEL SPECIFICATIONS
Size: .47” x 1.26” (12x32mm)
Scale: °F and °C
Type: Horizontal, Self Adhesive
Units/Packs: 10

1°F84919399104108
°C293334374042
2°F111115120129140144
°C444649546062
3°F149160171180190199
°C657177828893
4°F210219230241250261
°C99104110116121127
5°F270280289300309320
°C132138143149154160
6°F331340351360370379
°C166171177182188193
7°F390399410421435450
°C199204210216224232
8°F466480489500536554
°C241249254260280290



5 LEVEL
CLOCK SPECIFICATIONS
Size: 0.55” Dia. (14mm)
Type: Circular, Self Adhesive
Scale: °F and °C
Units/Packs: 10

1°F105110115120130
°C4043464954
2°F140150160170180
°C6065717782
3°F190200210220230
°C889399104110
4°F240250260270280
°C116121127132138
5°F290300310320330
°C143149154160166
6°F340350360370380
°C171177182188193
7°F390400410420435
°C199204210216224
8°F450465480490500
°C232241249254260



5 LEVEL SPECIFICATIONS
Size: 2.00” x 0.7” (51x18mm)
Scale: °F and °C
Type: Vertical, Self Adhesive
Units/Packs: 10

A°F99104109115120
°C3740434649
B°F120129140149160
°C4954606571
C°F171180190199210
°C7782889399
D°F219230241250261
°C104110116121127
E°F270280289300309
°C132138143149154
F°F320331340351360
°C160166171177182
G°F370379390399410
°C188193199204210
H°F421435450466480
°C216224232241249
I°F480489500536554
°C249254260280290
S°F84919399104
°C2933343740

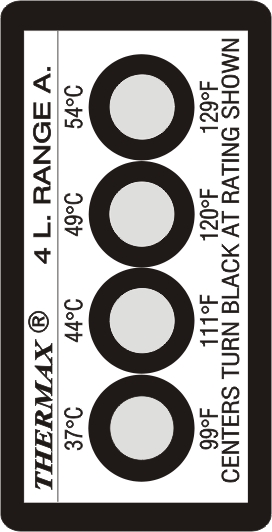

4 LEVEL SPECIFICATIONS
Size: 0.91” x 1.77” (23x45mm)
Type: Horizontal, Self Adhesive
Scale: °F and °C
Units/Packs: 10

A°F99111120129
°C37444954
B°F140149160171
°C60657177
C°F180190199210
°C82889399
D°F219230241250
°C104110116121
E°F261270280289
°C127132138143
F°F300309320331
°C149154160166
G°F340351360370
°C171177182188
H°F379390399410
°C193199204210
I°F421435450466
°C216224232241
J°F480500536554
°C249260280290

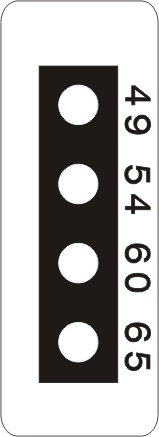

4 LEVEL MICRO SPECIFICATIONS
Size: 0.15” x 0.43” (4x11mm)
Type: Horizontal, Self Adhesive
Scale: °F or °C
Units/Packs: 10

1°F105110115120
°C40424446
2°F120130140150
°C49546065
3°F160170180190
°C71778288
4°F200210220230
°C9399104110
5°F240250260270
°C116121127132
6°F280290300310
°C138143149154
7°F320330340350
°C160166171177
8°F360370380390
°C182188193199
9°F400410420435
°C204210215224



ENCAPSULATED SPECIFICATIONS
Size: 0.47” x 0.51” (12x13mm)
Scale: °F and °C
Units/Packs: 50
Type: Single temperature
indicator shows when maximum
temperature has been achieved.
Self adhesive.

°F91
°C33
°F93
°C34
°F99
°C37
°F104
°C40
°F108
°C42
°F109
°C43
°F111
°C44
°F115
°C46
°F120
°C49
°F129
°C54
°F140
°C60
°F144
°C62
°F149
°C65
°F160
°C71
°F171
°C77
°F176
°C80
°F180
°C82
°F190
°C88
°F199
°C93
°F210
°C99
°F219
°C104
°F230
°C110
°F241
°C116
°F250
°C121
°F261
°C127
°F270
°C132
°F280
°C138
°F289
°C143
°F300
°C149
°F309
°C154
°F320
°C160
°F331
°C166
°F340
°C171
°F351
°C177
°F360
°C182
°F370
°C188
°F379
°C193
°F390
°C199
°F399
°C204
°F410
°C210
°F421
°C216
°F435
°C224
°F450
°C232
°F466
°C241
°F480
°C249
°F489
°C254
°F500
°C260
°F536
°C280
°F554
°C290



Thermax Irreversible Temperature Stickers Documents

Thermax IFU015 Rev 00 TQC
TQC-Temp-Stickers-data-sheet-1.pdf
Product-Information-PDS001-Rev03-TQC-1.pdf

    Weight.02 lbs
    Dimensions2 × .7 × .2 in
    Specification

    29°C or 84.2°F, 30°C or 86°F, 31°C or 87.8°F, 32°C or 89.6°F, 33°C or 91.4°F, 34°C or 93.2°F, 35°C or 95°F, 36°C or 96.8°F, 37°C or 98.6°F, 38°C or 100.4°F, 39°C or 102.2°F, 40°C or 104°F, 41°C or 105.8°F, 42°C or 107.6°F, 43°C or 109.4°F, 44°C or 111.2°F, 45°C or 113°F, 46°C or 114.8°F, 47°C or 116.6°F, 48°C or 118.4 °F, 49°C or 120.2°F, 50°C or 122°F, 51°C or 123.8°F, 52°C or 125.6°F, 53°C or 127.4 °F, 54°C or 129.2°F, 55°C or 131°F, 56°C or 132.8°F, 57°C or 134.6°F, 58°C or 136.4 °F, 59°C or 138.2°F, 60°C or 140°F, 61°C or 141.8°F, 62°C or 143.6°F, 63°C or 145.4 °F, 64°C or 147.2°F, 65°C or 149°F, 65°C or 144°F, 66°C or 150.8°F, 67°C or 152.6°F, 68°C or 154.4 °F, 69°C or 156.2°F, 70°C or 158°F, 71°C or 159.8°F, 72°C or 161.6°F, 73°C or 163.4 °F, 74°C or 165.2°F, 75°C or 167°F, 76°C or 168.8°F, 77°C or 170.6°F, 78°C or 172.4 °F, 79°C or 174.2°F, 80°C or 176°F, 81°C or 177.8°F, 82°C or 179.6°F, 83°C or 181.4 °F, 84°C or 183.2°F, 85°C or 185°F, 86°C or 186.8°F, 87°C or 188.6°F, 88°C or 190.4 °F, 89°C or 192.2°F, 90°C or 194°F, 91°C or 195.8°F, 92°C or 197.6°F, 93°C or 199.4 °F, 94°C or 201.2°F, 95°C or 203°F, 96°C or 204.8°F, 97°C or 206.6°F, 98°C or 208.4 °F, 99°C or 210.2°F, 100°C or 212°F, 101°C or 213.8°F, 102°C or 215.6°F, 103°C or 217.4°F, 104°C or 219.2°F, 105°C or 221°F, 106°C or 222.8°F, 107°C or 224.6°F, 108°C or 226.4°F, 109°C or 228.2°F, 110°C or 230°F, 111°C or 231.8°F, 112°C or 233.6°F, 113°C or 235.4°F, 114°C or 237.2°F, 115°C or 239°F, 116°C or 240.8°F, 117°C or 242.6 °F, 118°C or 244.4°F, 119°C or 246.2°F, 120°C or 248°F, 121°C or 249.8°F, 122°C or 251.6°F, 123°C or 253.4°F, 124°C or 255.2°F, 125°C or 257°F, 126°C or 258.8°F, 127°C or 260.6°F, 128°C or 262.4°F, 129°C or 264.2°F, 130°C or 266°F, 131°C or 267.8°F, 132°C or 269.6°F, 133°C or 271.4°F, 134°C or 273.2°F, 135°C or 275°F, 136°C or 276.8°F, 137°C or 278.6 °F, 138°C or 280.4°F, 139°C or 282.2°F, 140°C or 284°F, 141°C or 285.8°F, 142°C or 287.6°F, 143°C or 289.4°F, 144°C or 291.2°F, 145°C or 293°F, 146°C or 294.8°F, 147°C or 296.6° F, 148°C or 298.4°F, 149°C or 300.2°F, 150° C or 302°F, 151°C or 303.8°F, 152°C or 305.6°F, 153°C or 307.4°F, 154 °C or 309.2°F, 155°C or 311°F, 156°C or 312.8°F, 157°C or 314.6°F, 158°C or 316.4°F, 159°C or 318.2°F, 160°C or 320°F, 161°C or 321.8°F, 162°C or 323.6°F, 163°C or 325.4°F, 164°C or 327.2°F, 165°C or 329°F, 166°C or 330.8°F, 167°C or 332.6°F, 168°C or 334.4°F, 169°C or 336.2°F, 170°C or 338°F, 171°C or 339.8°F, 172°C or 341.6°F, 173°C or 343.4°F, 174°C or 345.2°F, 175°C or 347°F, 176°C or 348.8°F, 177°C or 350.6°F, 178°C or 352.4°F, 179°C or 354.2°F, 180°C or 356°F, 180°C or 357.8°F, 182°C or 359.6°F, 183°C or 361.4°F, 184° 363.2°F, 185°C or 365°F, 186°C or 366.8°F, 187°C or 368.6°F, 188°C or 370.4°F, 189°C or 372.2°F, 190°C or 374°F, 191°C or 375.8°F, 192°C or 377.6°F, 193°C or 379.4°F, 194°C or 381.2 °F, 195°C or 383°F, 196°C or 384.8°F, 197°C or 386.6°F, 198°C or 388.4°F, 199°C or 390.2 °F, 200°C or 392°F, 201°C or 393.8°F, 202°C or 395.6°F, 203°C or 397.4°F, 204°C or 399.2°F, 205°C or 401°F, 206°C or 402.8°F, 207°C or 404.6°F, 208°C or 406.4°F, 209°C or 408.2°F, 210°C or 410°F, 211°C or 411.8°F, 212°C or 413.6°F, 213°C or 415.4°F, 214°C or 417.2°F, 215°C or 419°F, 216°C or 420.8°F, 217°C or 422.6°F, 218°C or 424.4°F, 219°C or 426.2°F, 220°C or 428°F, 221°C or 429.8°F, 222°C or 431.6°F, 223°C or 433.4°F, 224°C or 435.2°F, 225°C or 437°F, 226°C or 438.8°F, 227°C or 440.6°F, 228°C or 442.4°F, 229°C or 444.2°F, 230°C or 446°F, 231°C or 447.8°F, 232°C or 449.6°F, 233°C or 451.4°F, 234°C or 453.2°F, 235°C or 455°F, 236°C or 456.8°F, 237°C or 458.6°F, 238°C or 460.4°F, 239°C or 462.2°F, 240°C or 464°F, 241°C or 465.8°F, 242° 467.6°F, 243°C or 469.4°F, 244°C or 471.2 °F, 245°C or 473 °F, 246°C or 474.8°F, 247°C or 476.6°F, 248°C or 478°F, 249°C or 479.8 °F, 250°C or 481.6°F, 251°C or 483.4°F, 252°C or 485.2°F, 253°C or 487°F, 254°C or 488.8°F, 255°C or 490.6°F, 256°C or 492.4°F, 257°C or 494.2°F, 258°C or 496°F, 259°C or 497.8°F, 260°C or 499.6°F, 261°C or 501.4°F, 262°C or 503.2°F, 263°C or 505°F, 264°C or 506.8°F, 265°C or 508.6°F, 266°C or 510.4°F, 267°C or 512.2°F, 268°C or 514°F, 269°C or 515.8°F, 270°C or 517.6°F, 271°C or 519.4°F, 272°C or 521.2°F, 273°C or 523°F, 274°C or 524.8°F, 275°C or 526.6°F, 276°C or 528.4°F, 277°C or 530.2°F, 278°C or 532°F, 279°C or 533.8°F, 280°C or 535.6°F, 281°C or 537.4°F, 282°C or 539.2°F, 283°C or 541°F, 284°C or 542.8°F, 285°C or 544.6°F, 286°C or 546.4°F, 287°C or 548.2°F, 288°C or 550°F, 289°C or 551.8°F, 290°C or 553.6°F, 10 LEVEL RANGE A, 10 LEVEL RANGE B, 10 LEVEL RANGE C, 10 LEVEL RANGE D, 8 LEVEL RANGE A, 8 LEVEL RANGE B, 8 LEVEL RANGE C, 8 LEVEL RANGE D, 8 LEVEL RANGE E, 6 LEVEL MINI RANGE 1, 6 LEVEL MINI RANGE 2, 6 LEVEL MINI RANGE 3, 6 LEVEL MINI RANGE 4, 6 LEVEL MINI RANGE 5, 6 LEVEL MINI RANGE 6, 6 LEVEL MINI RANGE 7, 6 LEVEL MINI RANGE 8, 5 LEVEL RANGE A, 5 LEVEL RANGE B, 5 LEVEL RANGE C, 5 LEVEL RANGE D, 5 LEVEL RANGE E, 5 LEVEL RANGE F, 5 LEVEL RANGE G, 5 LEVEL RANGE H, 5 LEVEL RANGE I, 5 LEVEL RANGE S, 4 LEVEL RANGE A, 4 LEVEL RANGE B, 4 LEVEL RANGE C, 4 LEVEL RANGE D, 4 LEVEL RANGE E, 4 LEVEL RANGE F, 4 LEVEL RANGE G, 4 LEVEL RANGE H, 4 LEVEL RANGE I, 4 LEVEL RANGE J, 4 Level Micro Range 2, 4 Level Micro Range 4, 4 Level Micro Range 5, 4 Level Micro Range 7, 4 Level Micro Range 8, 4 Level Micro Range 9, CLOCKS RANGE 1, CLOCKS RANGE 2, CLOCKS RANGE 3, CLOCKS RANGE 4, CLOCKS RANGE 5, CLOCKS RANGE 6, CLOCKS RANGE 7, CLOCKS RANGE 8

    Key Specifications

    Temperature Range: 29 – 290°C

    Accuracy: ±1°C / ±2°F (29 – 99°C range)
    ±1.5°C / ±3°F (100-154°C range)
    ± 1% +1°C / ± 1% ±2°F (160-290°C range)

    Visual Indication Clear to Black

    Mounting: Self Adhesive

    Storage Requirements: Store in a cool dry space, below lowest temperature level
