Climate Testing, Dewpoint
Dew Point Meter Logger PosiTector DPM and DPM L+

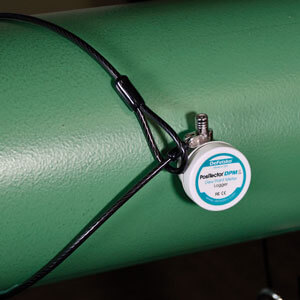

Magnetic probes attach to steel structures for monitoring climatic conditions. Measures and records climatic conditions including: relative humidity, air temperature, surface temperature, dew point temperature, difference between surface and dew point temperatures, and wet bulb temperature.
- Fast response, precision sensors provide accurate, repeatable readings
- Environmentally sealed enclosure – weatherproof, dustproof, and shockproof—meets or exceeds IP65
- Internal memory storage of 10,000 datasets (60,000 readings)
Conforms to ISO 8502-4, BS 7079-B4, ASTM D3276, IMO PSPC, SSPC-PA7 and US Navy NSI 009-32

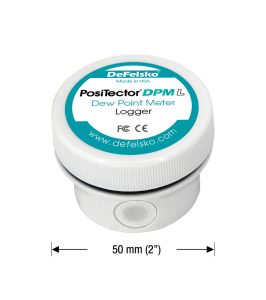

PosiTector DPM L and DPM L+
Ideal for unattended logging and remote monitoring of environmental data
- Automatically upload readings to PosiSoft.net at user-specified intervals to remotely monitor conditions (WiFi network required)
- Configure email alarms for notification when conditions exceed pre-set thresholds
- USB port for supplying continuous power
- Automatically group readings into batches daily, weekly, or monthly intervals

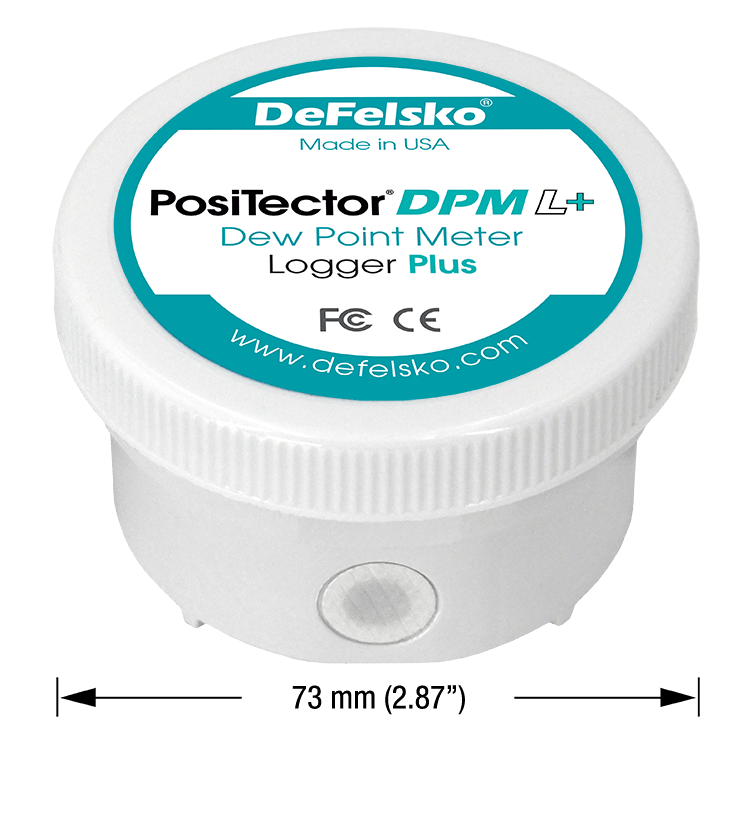

PosiTector DPM L+Dew Point Meter Logger Plus Memory
|
Simple

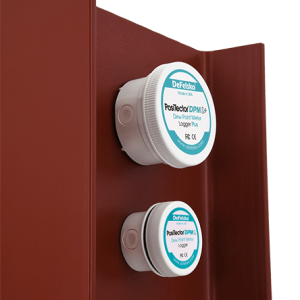

- Attaches to steel structures to measure and record environmental parameters independently for up to 200 days (DPM L) or 600 days (DPM L+)
- Records parameters at user selected intervals from 1 min. to 8 hrs.

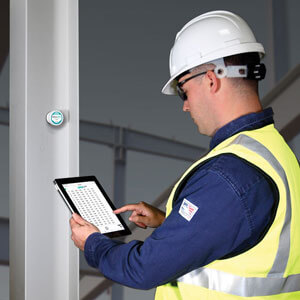

- Connect via Bluetooth to an Apple/Andriod device to view live data, configure settings, start logging, and email reports
- Uses common CR2032 Coin cell (PosiTector DPM L) or AAA batteries (PosiTector DPM L+)
Powerful
- Automatically generate user-formatted reports and share via email, text, and cloud storage services
- Internal memory storage of 10,000 datasets (60,000 readings)- every stored dataset is date and time stamped
Durable
- Environmentally sealed enclosure—weatherproof, dustproof, and shockproof—meets or exceeds IP65
- Two-year warranty
- Kensington Security Slot for anti-theft protection. PosiTector DPM L Lock, sold separately.
Accurate
- Fast response, precision sensors provide accurate, repeatable readings
- Certificate of Calibration showing traceability to NIST included
- Conforms to national and international standards including ISO and ASTM
Specifications
| Specifications | Range | Accuracy | Resolution |
|---|---|---|---|
| Surface Temperature | -10° to 0° C >0° to 80° C >80° to 100° C 14° to 32° F >32° to 176° F >176° to 212° F | ± 1.5° C ± 0.5° C ± 1.5° C ± 2.7° F ± 0.9° F ± 2.7° F | 0.1° C 0.1° F |
| Air Temperature | -10° to 60° C 14° to 140° F | ± 0.5° C ± 1° F | 0.1° C 0.1° F |
| Humidity | 0 to 100% | ± 3% | 0.1% |
| Dew Point | -60° to 60° C -76° to 140° F | ± 3° C* ± 5.4° F* | 0.1° C 0.1° F |
| * Dependent on RH. See Dew Point (Td) Accuracy for more information. |
| Weight | 2 lbs |
|---|---|
| Dimensions | 9 × 7 × 5 in |
| Model | DPM L, DPM L+ |
