Pit Gages

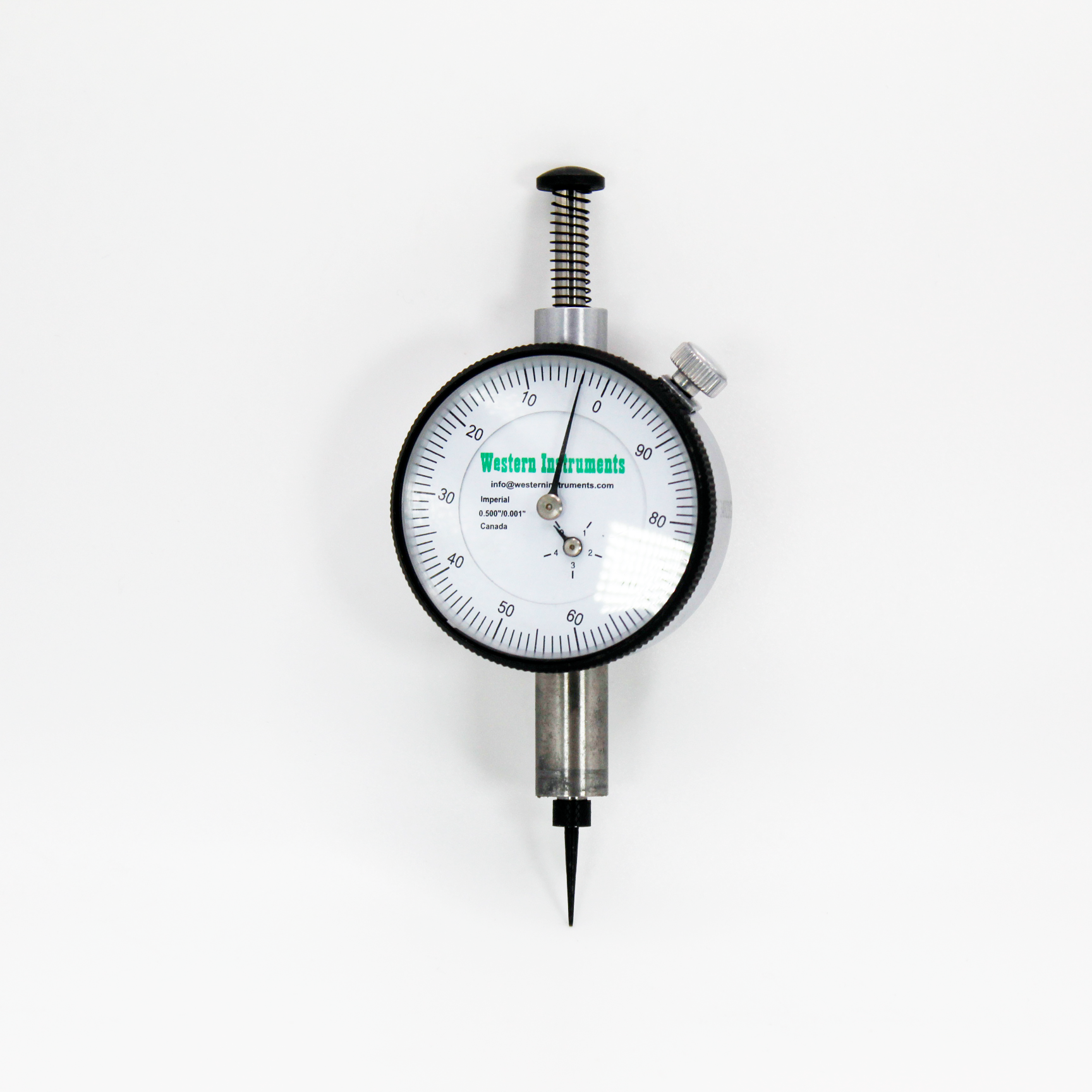

Analog Dial Indicators N88-I
Western Instruments Dial Pit Gauges, such as a Basic Pit Gauge, can actually be 3 different Models. Our 3 different Dial Indicators are interchangeable, and fit the same Blade, therefore, we can offer;
▪ Imperial Basic Pit Gauge (N88-2) or
▪ Metric Basic Pit Gauge (N88-2-M) or
| Manufacturer: | Western Instruments | |
| Manufacturer Part No.: | N88–I / M | |
| Part No.: | N88–I / M |
| Weight | 2 lbs |
|---|---|
| Dimensions | 9 × 7 × 5 in |
| US/METRIC | US – N88–I, METRIC – N88–M |
