Marine Inspection Kit – N88-MI

Pipeline Inspectors Kit (N88-MI)

As Westerns Pit Gauge Product Series gains popularity, we are able to address various industry needs.  When Pipeline Inspectors see all of the different models of Pit Gauges we offer, and the boss wont shell out the money for one of our Bridge Type units, they figure out what they can get by with.  Due to customer requests, we now offer the Pipeline Inspectors Kit.


Manufacturer Part No.: N88-MI

Part No.: N88-MI

The Marine Inspectors Kit consists of the following components;

  • Carry Case (7 x 5 x 2).
  • Dial Indicator (Imperial, Metric, or Digital).
  • Reaching Magnetic Blade (N88-5M).
  • Pocket Blade (N88-4).
  • Basic Blade (N88-2).
  • Allan Key.
  • Spare Contact Point.
  • Operator Instructions.
  • No matter which Blade the Dial indicator is installed on, all the components will fit inside the rugged Carrying Case.

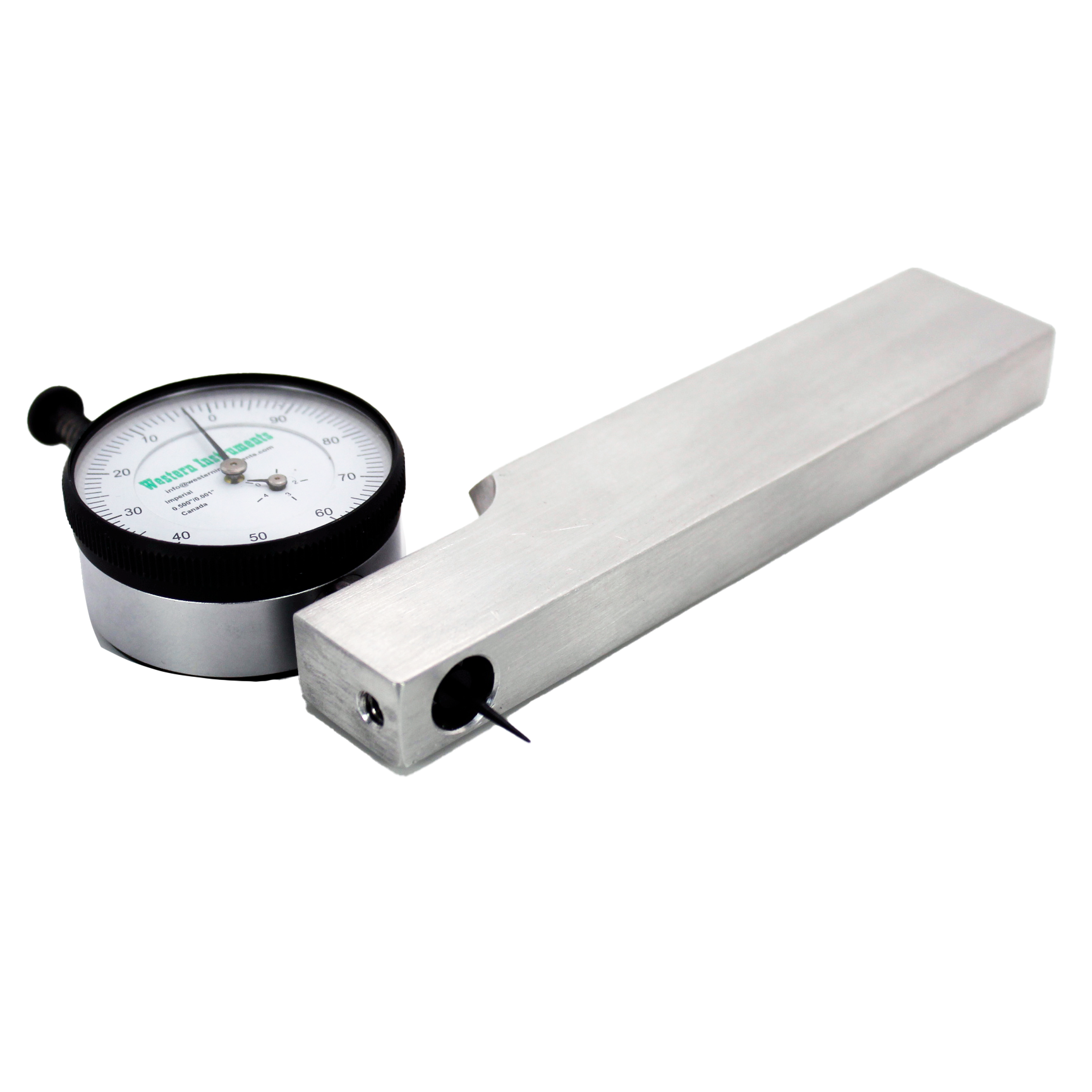

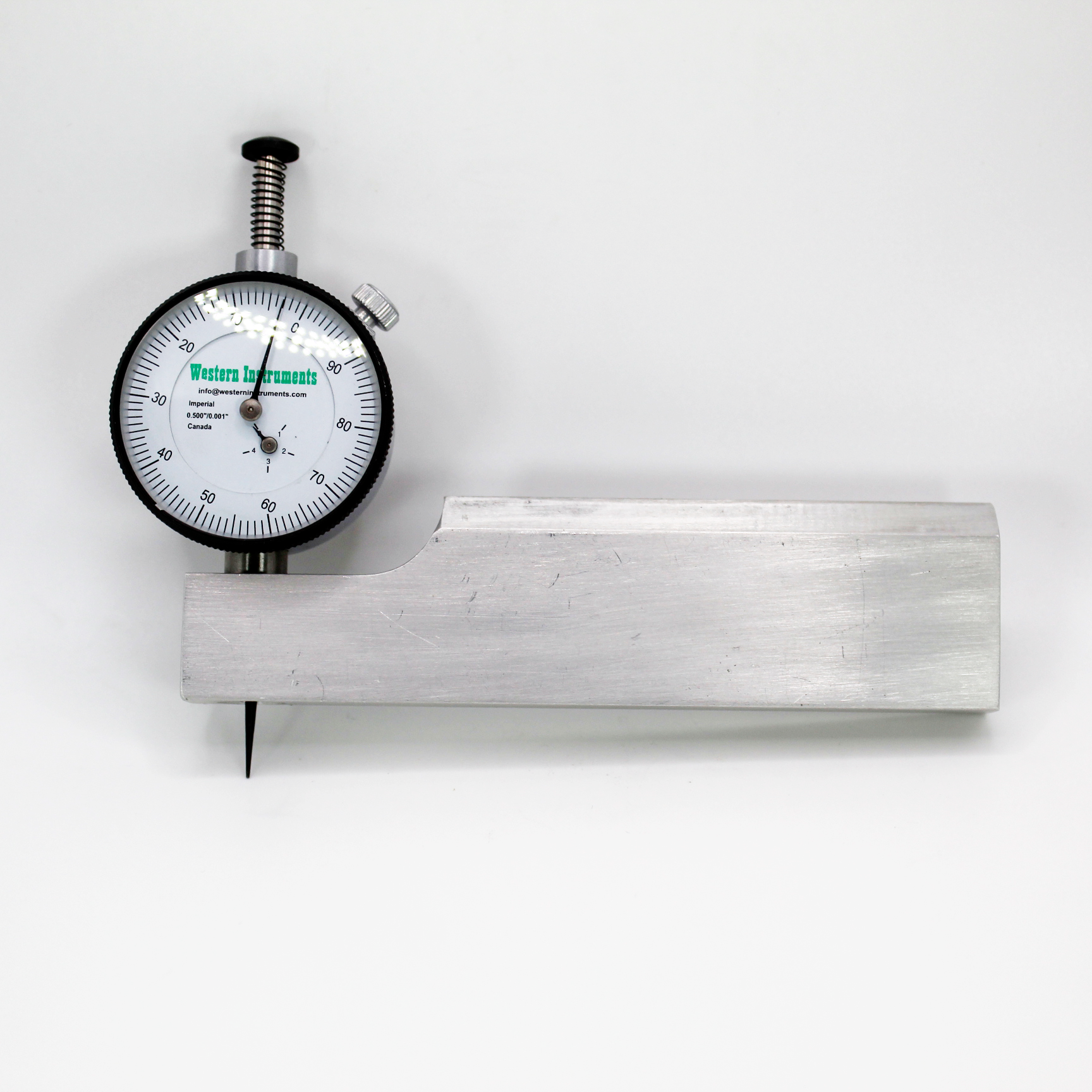

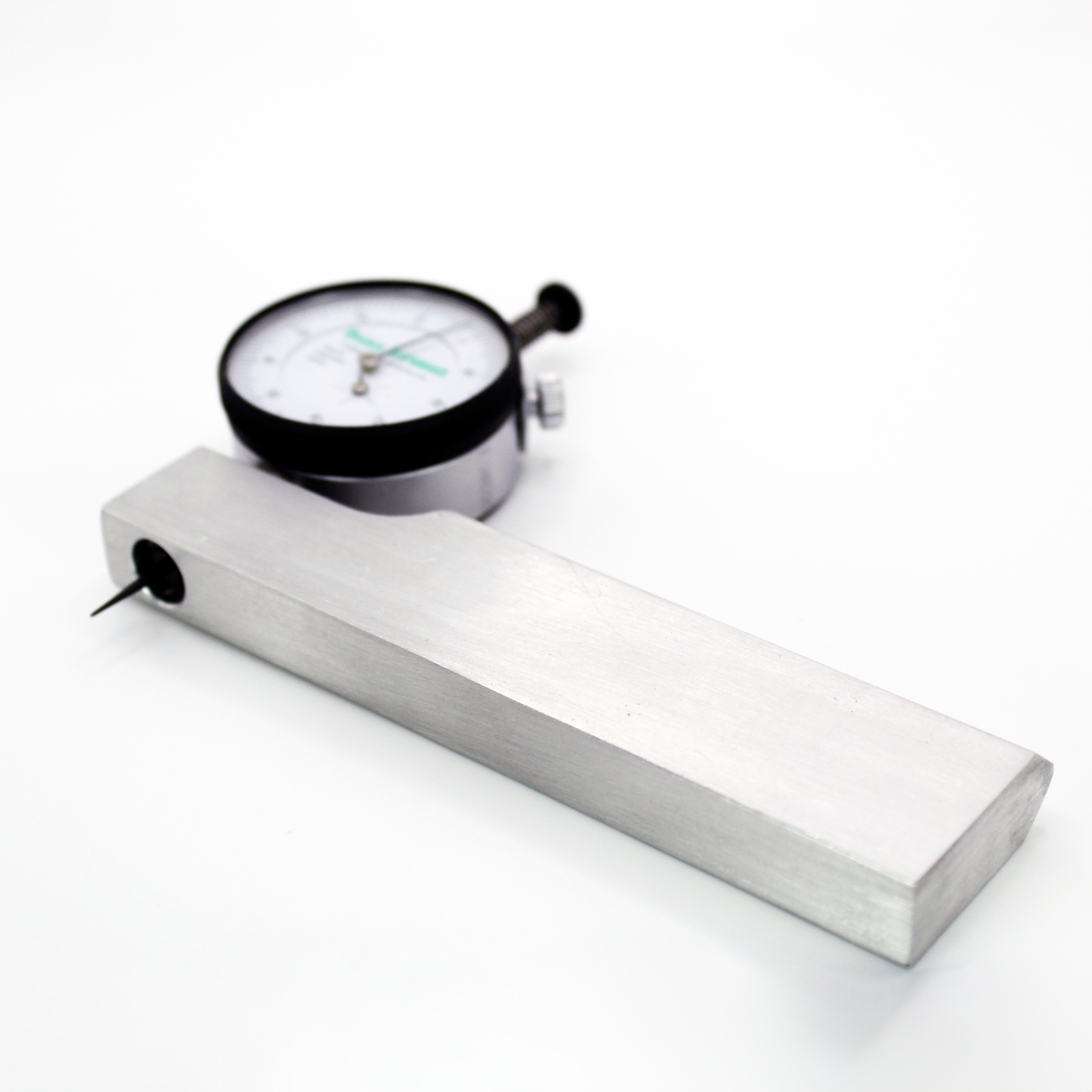

The Reaching Blade is 4 (121mm) long, so it will deal with larger pits, but cant tackle large areas of  Weight-Loss-Corrosion or Dents, like one of our Bridging Pit Gauges.  As an option, we can substitute the Composite Reaching Plus Magnetic Blade (N88-6MC) which is 6 (152mm) long, with powerful magnets.  In any case, the cut-away nose, at the end of either Reaching Blade, allows the Gauge to measure right up to a Weld, Riser, or Re-Pad.

The Basic Blade will most often have the Dial Indicator installed  on it, as the Basic Pit Gauge is by far the most popular Dial   Indicator Pit Depth Gauge we offer.  As illustrated to the right,  no matter the Configuration of assembly, everything still fits into  the rugged custom made carrying case.

Specified by a Senior Inspector, the Pocket Pit Gauge allows inspection on complex  curvatures, such as pump housings, impellers, turbine blades, etc.  As the name suggests, the Pocket Pit Gauge conveniently fits in your pocket (but then again so does the Basic Pit Gauge).

If you’re a Vessel Inspector, don’t let the name throw you off, as we offer  the Vessel Inspectors Kit  (N88-VI) which is identical and a good start before moving up to one of our Bridging Pit Gauges.
SKU: N88-MI Category: Tag:
Weight 3 lbs
Dimensions 12 × 12 × 5 in
