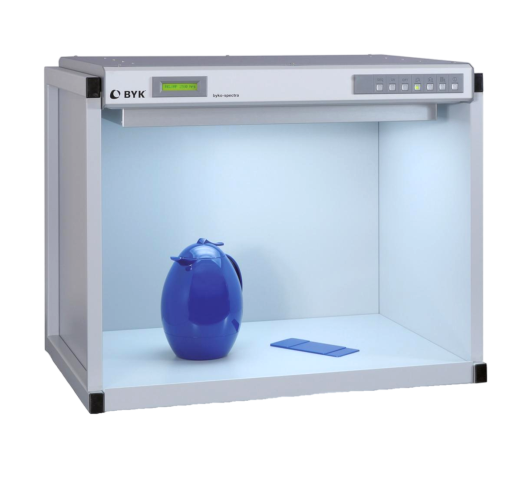

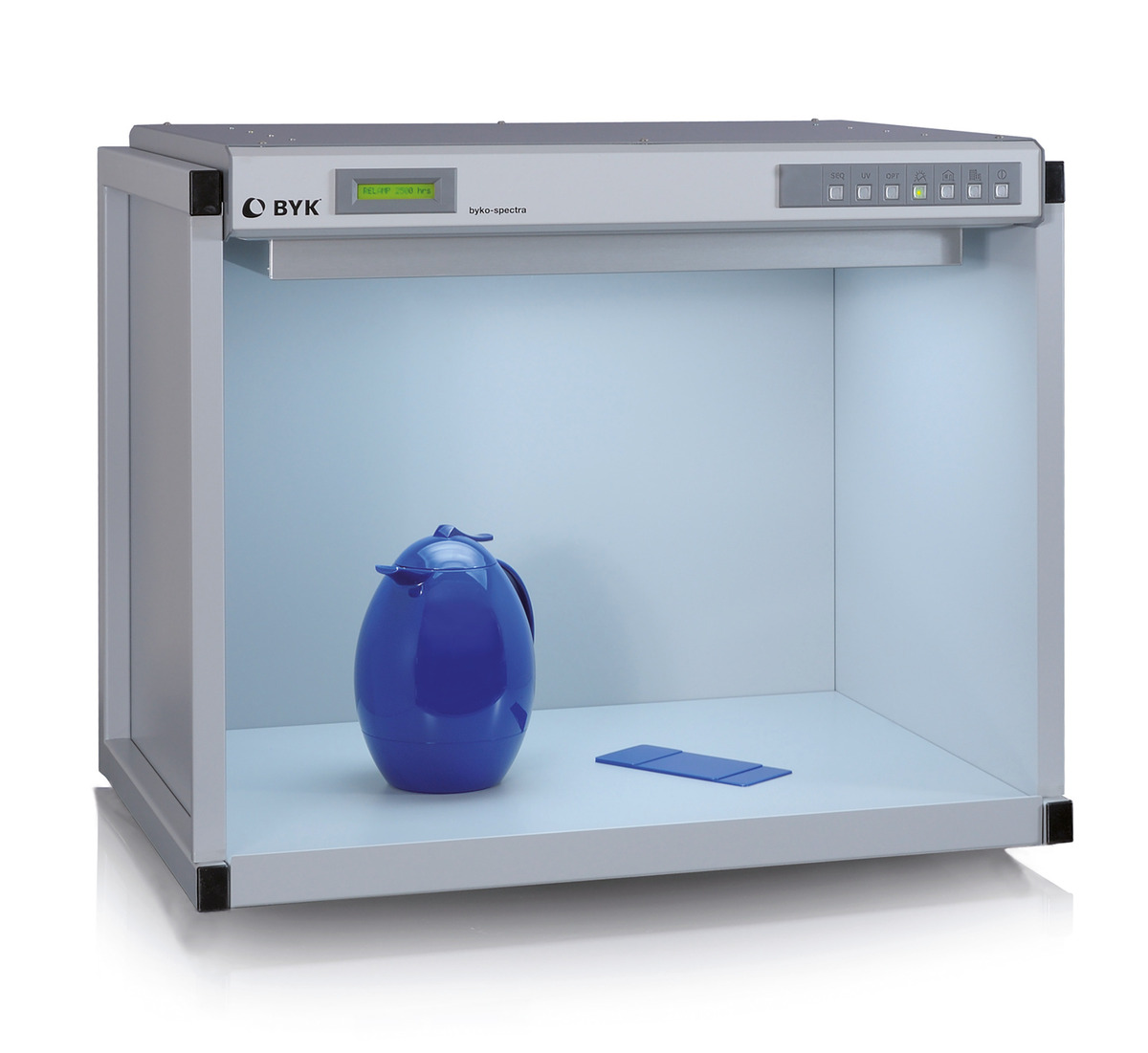

Features
Consistent color evaluation under 5 illuminants at an affordable price.
- Five different controlled illuminants:
- Daylight D65 (Class B)
- Incandescent light A
- Department store light CWF and TL84
- Ultra-violet light UV
- Comfortable testing in a compact design: Viewing area 36 x 61 x 41 cm
- UV lamp allows evaluation of optical brighteners
- Automatic illuminant sequencing to standardize testing procedures
- Timer to track daylight source usage and trigger lamp replacement
- For laboratory and production use
Technical Attributes
Technical Specifications
- Diffusor Panel
no - Viewing Area
61 x 41 x 36 cm - Viewing Area
24 x 16 x 14 in - No. of Illuminants
5 - Illuminants
Daylight (D65 class B)
Incandescent light (A)
Department store light (CWF, TL84)
Ultra-violet light (UV) - Light Source for Daylight
Fluorescent tubes - Voltage
115 V, 50/60 Hz
General
- Weight
18 kg - Weight
39 lb - Dimensions: L x W x H
67 x 48 x 49 cm - Dimensions: L x W x H
26 x 19 x 19.5 in
Standards
ISO 3668
ASTM D1729
Delivery Content
- Light booth
- 5 illuminants: D65, A, CWF, TL84, UV (6062)
- Factory certificate
- Manual
